9/16-12 High Speed Steel Left Hand Tap Reviews
9/16-12 High Speed Steel Left Hand Tap Feature
- Size: 9/16
- Threads per Inch: 12
- Left Hand Threads
Wednesday, August 31, 2011
9/16-12 High Speed Steel Left Hand Tap
Tuesday, August 30, 2011

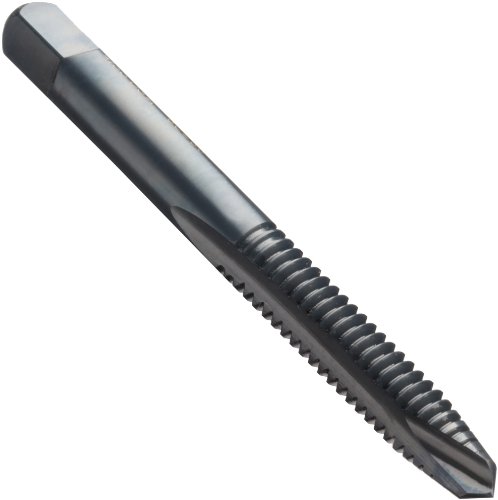

Union Butterfield 1585A(UNC) High-Speed Steel Spiral Point Tap, Relieved Style, Black Oxide Finish, Round Shank With Square End, Plug Chamfer, 1/2"-13 Thread Size
Union Butterfield 1585A(UNC) High-Speed Steel Spiral Point Tap, Relieved Style, Black Oxide Finish, Round Shank With Square End, Plug Chamfer, 1/2"-13 Thread Size Reviews
Union Butterfield 1585A(UNC) High-Speed Steel Spiral Point Tap, Relieved Style, Black Oxide Finish, Round Shank With Square End, Plug Chamfer, 1/2"-13 Thread Size Feature
- Spiral point tap pushes chips ahead of tool to reduce clogging
- Spiral point tap with straight flutes for cutting threads in through holes
- Black oxide finish improves lubricity, resists corrosion, and helps prevent buildup
- Relieved-style design reduces friction between tap and workpiece for reduced tool wear
- Plug chamfer for easier starting and correct perpendicular alignment
The Union Butterfield 1585A(UNC)/1585A(UNF) high-speed steel spiral point tap has a relieved-style design, straight flutes with a plug chamfer, black oxide finish, and a round shank with a square end, and is used to create right-hand threads in a range of materials. It is available in two different ANSI thread specification standards: UNC (Unified Coarse) and UNF (Unified Fine). The spiral point of this tap (sometimes referred to as a “gun tap”) pushes chips ahead of the tool and the straight flutes reduce clogging. Both characteristics make it suitable for threading through holes (extending through the workpiece). The black oxide finish of this tool will not chip. It improves lubricity, resists corrosion, and helps to prevent buildup and welding on the cutting edge of the tool. Relieved-style design reduces the friction between tap and workpiece for longer tool life. A plug chamfer distributes cutting to ease tapping at the beginning of the hole and to maintain correct perpendicular alignment with the workpiece.
Right-hand threads are designed to tighten when a head or nut is rotated clockwise (the most common threading direction). High-speed steel (HSS) is a common general-purpose steel for cutting tools, and is compatible with a variety of materials. The round shank with square end helps to minimize rotation in the tool holder. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.
In the Union Butterfield 1585A(UNC) and 1585A(UNF) tap series, taps with 1/4” to 5/16” nominal diameters have two flutes, and those with 3/8” to 3/4” nominal diameters have three flutes. All taps in these series have plug chamfers. This tap conforms to ANSI standards and can create threads to a depth 2 ½ times its diameter. It is suitable for ANSI 2B and 3B tolerance classes: 2B is an average quality fit for commercial and industrial fasteners; 3B produces close-tolerance fasteners used for greater resistance to stripping, as in aerospace applications.
Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.
Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
Friday, August 26, 2011
Westward 2LXF9 Hand Tap, Plug, HSS, #8-32
Westward 2LXF9 Hand Tap, Plug, HSS, #8-32 Reviews
Hand Tap, Plug, General Purpose, Carbon Steel, Plain Finish, 4 Flutes, Size #8, Pitch 32, UNC, Thread Length 3/4 In, Overall Length 2-1/8 In, 3-5 Pitches, Pitch Diameter Limits H3, Shank Dia 0.168 In, Use With Machine or Tap Wrench For Inside Thread Producing, ANSI Standards
Thursday, August 25, 2011
1/2" - 13 HIGH SPEED STEEL OVERSIZE SPIRAL POINT PLUG TAP
1/2" - 13 HIGH SPEED STEEL OVERSIZE SPIRAL POINT PLUG TAP Reviews
1/2" - 13 HIGH SPEED STEEL OVERSIZE SPIRAL POINT PLUG TAP Feature
- Premium Import!
- Quality and Performance to satisfy you!
- Oversize: +.005
- Overall Length: 3-3/8"
- Thread Length: 1-21/32"
Wednesday, August 24, 2011
Westward 5TWT8 Tap, Taper Pipe, 1/4 In
Westward 5TWT8 Tap, Taper Pipe, 1/4 In Reviews
Pipe Tap, Taper, Tap Style General Purpose, High Speed Steel, Plain Finish, 4 Flutes, Size 1/4, Pitch 18, NPT or ANPT, Shank Dia. 0.5625, Surface Treated Plain, Use with Free Running and Screw Locking Helicoil Threaded Inserts, Tolerance 3B, ANSI Standards, Package Quantity 1
Monday, August 22, 2011
IMPERIAL 70218 "IMPERIALLOY" PLUG TAP USS 12-24
IMPERIAL 70218 "IMPERIALLOY" PLUG TAP USS 12-24 Reviews
IMPERIAL 70218 "IMPERIALLOY" PLUG TAP USS 12-24 Feature
- Flutes: 3
- USS Fractional Size:12-24
- All taps are right hand threaded.
- Sizes are clearly stamped on the shank of each tap.
- Precision ground flutes cut accurate, clean threads.
Saturday, August 20, 2011
Westward 2LWK9 Hand Tap, Bottom, HSS, #4-40
Westward 2LWK9 Hand Tap, Bottom, HSS, #4-40 Reviews
Hand Tap, Bottom, General Purpose, Carbon Steel, Plain Finish, 4 Flutes, Size #4, Pitch 40, UNC, Thread Length 9/16 In, Overall Length 1-7/8 In, 1-2 Pitches, Pitch Diameter Limits H3, Shank Dia 0.141 In, Use With Machine or Tap Wrench For Inside Thread Producing, ANSI Standards
Wednesday, August 17, 2011
5 MM x 1.0 High Speed Steel Bottoming Tap
5 MM x 1.0 High Speed Steel Bottoming Tap Reviews
5 MM x 1.0 High Speed Steel Bottoming Tap Feature
- MM Diam.: 5
- MM Pitch: 1
Tuesday, August 16, 2011
1/2" - 20 High Speed Steel Plug Tap
1/2" - 20 High Speed Steel Plug Tap Reviews
1/2" - 20 High Speed Steel Plug Tap Feature
- Size: 1/2-20
- High Speed Steel. Ground Thread
Monday, August 15, 2011

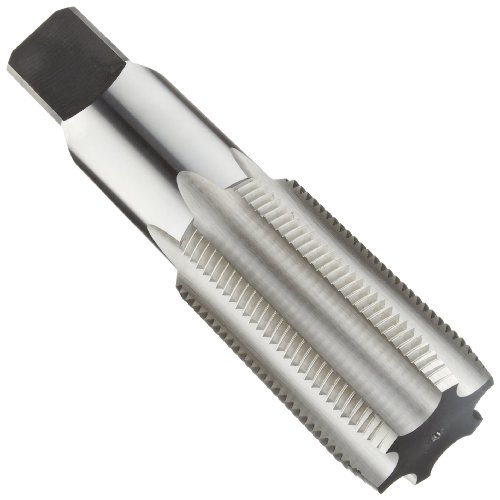

Union Butterfield 1505(UNS) High-Speed Steel Hand Tap, 8-Pitch, Uncoated (Bright) Finish, Round Shank With Square End, Plug Chamfer, 2"-8 Thread Size
Union Butterfield 1505(UNS) High-Speed Steel Hand Tap, 8-Pitch, Uncoated (Bright) Finish, Round Shank With Square End, Plug Chamfer, 2"-8 Thread Size Reviews
Union Butterfield 1505(UNS) High-Speed Steel Hand Tap, 8-Pitch, Uncoated (Bright) Finish, Round Shank With Square End, Plug Chamfer, 2"-8 Thread Size Feature
- Hand threading tap with straight flutes cuts threads in through holes and blind holes
- ANSI standard 8-pitch threads for tapping large-diameter holes, including those with high-pressure requirements
- Available in UNC (Unified Coarse) or UNS (Unified Special) right-hand thread options for different applications
- High-speed steel is compatible with a variety of materials
- Uncoated (bright) tools have no additional surface treatment or coating, for use on a broad range of materials
The Union Butterfield 1505(UNC)/1505(UNS) uncoated, high-speed steel hand threading tap has straight flutes, 8-pitch threads, and a round shank with a square end, and is used to create right-hand threads for large-diameter tapping in a range of materials. It is available in two different ANSI thread specification standards: UNC (Unified Coarse) or UNS (Unified Special). The straight flutes are suitable for threading through holes (extending through the workpiece) and blind or bottoming holes (with only one opening). The 8-pitch standard (eight threads per inch) was designed for threading large-diameter bolts and nuts with high-pressure joints. It is now used mainly in oil-related industries, utilities, and general construction.
Right-hand threads are designed to tighten when the head or nut is rotated clockwise (the most common threading direction). High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provides an economical alternative to coated tools. The round shank with square end makes it suitable for hand or power-driven applications. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.
In the Union Butterfield 1505 series, the 1505(UNC) taps all have six flutes. 1505(UNS) taps with nominal diameters of 1 1/8” to 1 3/8” have four flutes and those with nominal diameters of 1 1/2” to 2 5/8” have six flutes. Taps in this series are available with a variety of chamfers. This tap conforms to ANSI standards and can create threads to a depth 1 ½ times its diameter. 1505(UNC) taps are suitable for the ANSI 2B tolerance class and 1505(UNS) taps are suitable for both 2B and 3B tolerance classes: 2B is an average quality fit for commercial and industrial fasteners; 3B produces close-tolerance fasteners that resist loosening, as in aerospace applications.
Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.
Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
Saturday, August 13, 2011
IMPERIAL 70237 "IMPERIALLOY" TAPER TAP USS 3/4-10
IMPERIAL 70237 "IMPERIALLOY" TAPER TAP USS 3/4-10 Reviews
IMPERIAL 70237 "IMPERIALLOY" TAPER TAP USS 3/4-10 Feature
- "IMPERIALLOY" TAPER TAP
- Flutes: 4
- USS Fractional Size: 3/4-10
- All taps are right hand threaded.
- Sizes are clearly stamped on the shank of each tap.
Friday, August 12, 2011

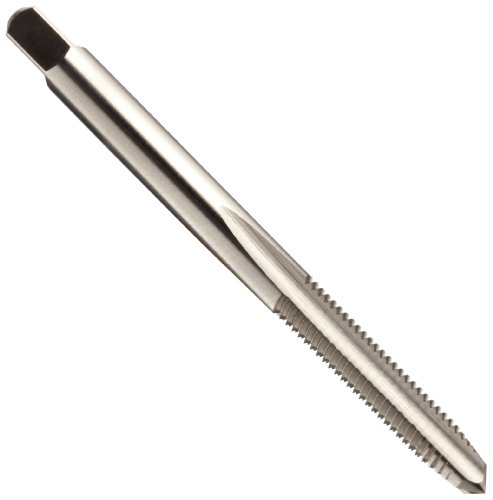

Union Butterfield 1528(UNF) High-Speed Steel Hand Tap, Uncoated (Bright) Finish, Round Shank With Square End, Bottoming Chamfer, 3 Flute, H3 Tolerance, #10-32 Thread Size
Union Butterfield 1528(UNF) High-Speed Steel Hand Tap, Uncoated (Bright) Finish, Round Shank With Square End, Bottoming Chamfer, 3 Flute, H3 Tolerance, #10-32 Thread Size Reviews
Union Butterfield 1528(UNF) High-Speed Steel Hand Tap, Uncoated (Bright) Finish, Round Shank With Square End, Bottoming Chamfer, 3 Flute, H3 Tolerance, #10-32 Thread Size Feature
- Hand threading tap with straight flutes cuts threads in through holes and blind holes
- Machine-screw tap sizes, in frequent demand for many industries and products
- Available in UNC (Unified Coarse), UNF (Unified Fine) or UNS (Unified Special) right-hand thread options for different applications
- High-speed steel is compatible with a variety of materials
- Uncoated (bright) tools have no additional surface treatment or coating, for use on a broad range of materials
The Union Butterfield 1528(UNC)/1528(UNF)/1528(UNS) uncoated, high-speed steel hand threading tap has straight flutes and a round shank with a square end, and is used to create machine-screw sized right-hand threads in a range of materials. It is available in three different ANSI thread specification standards: UNC (Unified Coarse), UNF (Unified Fine), or UNS (Unified Special). The straight flutes are suitable for threading through holes (extending through the workpiece) and blind or bottoming holes (with only one opening). Machine-screw sizes are used frequently in many industries and products.
Right-hand threads are designed to tighten when the head or nut is rotated clockwise (the most common threading direction). High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provides an economical alternative to coated tools. The round shank with square end makes it suitable for hand or power-driven applications. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.
In the Union Butterfield 1528(UNC) series, taps that are machine-screw size 1 have two flutes; sizes 2 through 6 are available in two or three flutes; sizes 8 and 10 are available with two, three, or four flutes; and size 12 has 4 flutes. In the 1528(UNF) series, taps that are sizes 0 and 1 have two flutes; sizes 2, 3, and 4 have three flutes; sizes 5 and 6 are available in two and three flutes; size 8 has four flutes; size 10 is available in two, three, and four flutes; and size 12 has four flutes. UB 1528(UNS) taps are available in size 4, with three flutes. Taps in these series are available with a variety of chamfers. This tap conforms to ANSI standards and can create threads to a depth 1 ½ times its diameter. It is suitable for ANSI 2B and 3B tolerance classes: 2B is an average quality fit for commercial and industrial fasteners; 3B produces close-tolerance fasteners that resist loosening, as in aerospace applications.
Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.
Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
Visit Store Now !!
Detail Products
Detail Reviews
Thursday, August 11, 2011
Union Butterfield 1585(UNF) High-Speed Steel Spiral Point Tap, Relieved Style, Uncoated (Bright) Finish, Round Shank With Square End, Plug Chamfer, H4 Tolerance, 2 Flute, 5/16"-24 Thread Size
Union Butterfield 1585(UNF) High-Speed Steel Spiral Point Tap, Relieved Style, Uncoated (Bright) Finish, Round Shank With Square End, Plug Chamfer, H4 Tolerance, 2 Flute, 5/16"-24 Thread Size Reviews
Union Butterfield 1585(UNF) High-Speed Steel Spiral Point Tap, Relieved Style, Uncoated (Bright) Finish, Round Shank With Square End, Plug Chamfer, H4 Tolerance, 2 Flute, 5/16"-24 Thread Size Feature
- Spiral point tap pushes chips ahead of tool to reduce clogging
- Spiral point tap with straight flutes for cutting threads in through holes
- Relieved-style design reduces friction between tap and workpiece for reduced tool wear
- Round shank with square end helps to minimize rotation in the tool holder
- Available in UNC (Unified Coarse) and UNF (Unified Fine) right-hand thread options for different applications
The Union Butterfield 1585(UNC)/1585(UNF) uncoated, high-speed steel spiral point tap has a relieved-style design, straight flutes, and a round shank with a square end, and is used to create right-hand threads in a range of materials. It is available in two different ANSI thread specification standards: UNC (Unified Coarse) and UNF (Unified Fine). The spiral point of this tap (sometimes referred to as a “gun tap”) pushes chips ahead of the tool and the straight flutes reduce clogging. Both characteristics make it suitable for threading through holes (extending through the workpiece). Relieved-style design reduces the friction between tap and workpiece for longer tool life.
Right-hand threads are designed to tighten when a head or nut is rotated clockwise (the most common threading direction). High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provides an economical alternative to coated tools. The round shank with square end helps to minimize rotation in the tool holder. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.
In the Union Butterfield 1585(UNC) and 1585(UNF) tap series, taps with 1/4” to 5/16” nominal diameters are available in two or three flutes, and those with 3/8” to 3/4” nominal diameters have three flutes. They are available with a variety of chamfers. These taps conform to ANSI standards and can create threads to a depth 2 ½ times their diameter. They are suitable for the ANSI 3B tolerance class: 3B produces close-tolerance fasteners that resist loosening, as in aerospace applications.
Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.
Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
